GLOBE VALVE
Features:
1) Sizes: 2 " - 10 "
2) Disc: cast iron
3) Bonnet: cast iron
4) Seal: bronze
5) Stem: bronze
6) Hand wheel: ductile iron
7) Standard: ANSI
8) Type: American standard cast iron globe valve
9) Pressure: 125lbs
10) Connection type: flange end
11) Control method: manual
12) Advantages: good appearance, long service life and flexible switch
Bellow Globe Valve :
Product structural features
Stop valve with bellow sealacc.to ANSI is applicable to the cutting and connection of pipelines medium that are used in various inductries such as peroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of CLASS150-900LBS and working temperature of 29~ 350?
Main structural fealtures
1.This product has logical structure, reliable seal, excellent performance and nice design.
2.The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resis

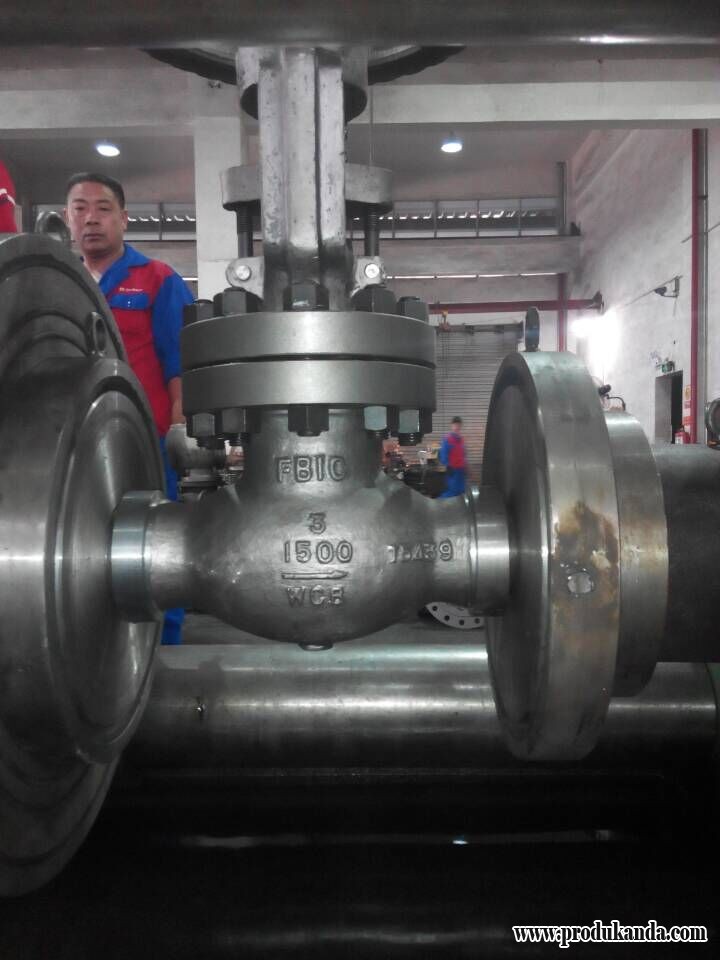

Carbon Steel( WCB) Globe Valve :
Features:
1) Material: WCB, LCB, LCC, LC3, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M
2) Class: 150 - 1500lbs
3) Size: 2 - 36 "
4) Standards: API6D, BS1873, ANSI B16.34
a) Face to face: ANSI B16.10
b) End flange: ANSI B16.5
c) BW end: ANSI B16.25
d) Test: API598
5) Operator: handwheel, gear, electric actuator
Cast Steel Globe Valve :
CLASS 150~ 1500 CAST STEEL GLOBE VALVE
OS& Y, Rising stem, Plug Disc
Bolted Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, BS1873
Face tu face( end tu end) : ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A.Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B.Grub screw: Secures yoke nut in the bonnet
C.Grease nipple: Supplies lubricant to the mating parts
Forged Globe Valve :
Carbon Steel Screwed Ends - reduced bore
FORGED GLOBE VALVE CLASS 800
Carbon Steel Socket Welded - reduced bore
Stainless Steel Globe Valve :
MAIN TECHNICAL PARAMETER:
FULL PORT
INVESTMENT CASTING
MATERIAL: CF8 / CF8M
BLOWOUT PROOF STEM
AVAILABLE SIZE: 1/ 2 " -8 " ( DN15-DN50)
WORKING PRESSURE: 200 psi ( WOG)
WORKING TEMPERATURE: -20° F---400° F ( -29° C- 200° C)
FEMALE THREADED END: BSPT / NPT / DIN2999
THE THREAD ENDS CONFIRM TO ASME B1.20.1( NPT) DIN2999& BS21 ISO228/ 1& ISO7/ 1
Material Ex. China, Japan, USA, Europe
